Product Features

  • Precision 75 Ohm impedance
  • Silver plated copper conductor
  • 100% sweep tested
  • Designed for static applications
  • Excellent EMI/EMC
  • Anti-interference performance
  • PVC jackets

Request For Quote

SKU N/A Category


The use of gas-injected foam high-density polyethylene insulation reduces attenuation and extends operating bandwidth. While a solid center silver plated copper conductor along with both foil and braid shield maximize signal integrity and cable distance.

Cable Specifications

Overall Diameter.159 Inches
Max Temperature-30 to 75 C
Jacket ColorBlack
Min. Bend Radius1.6 Inch.

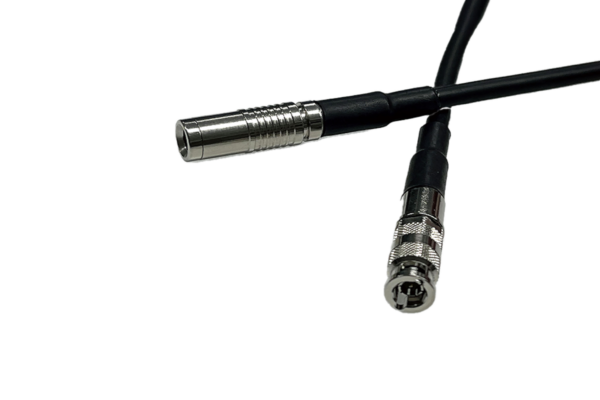

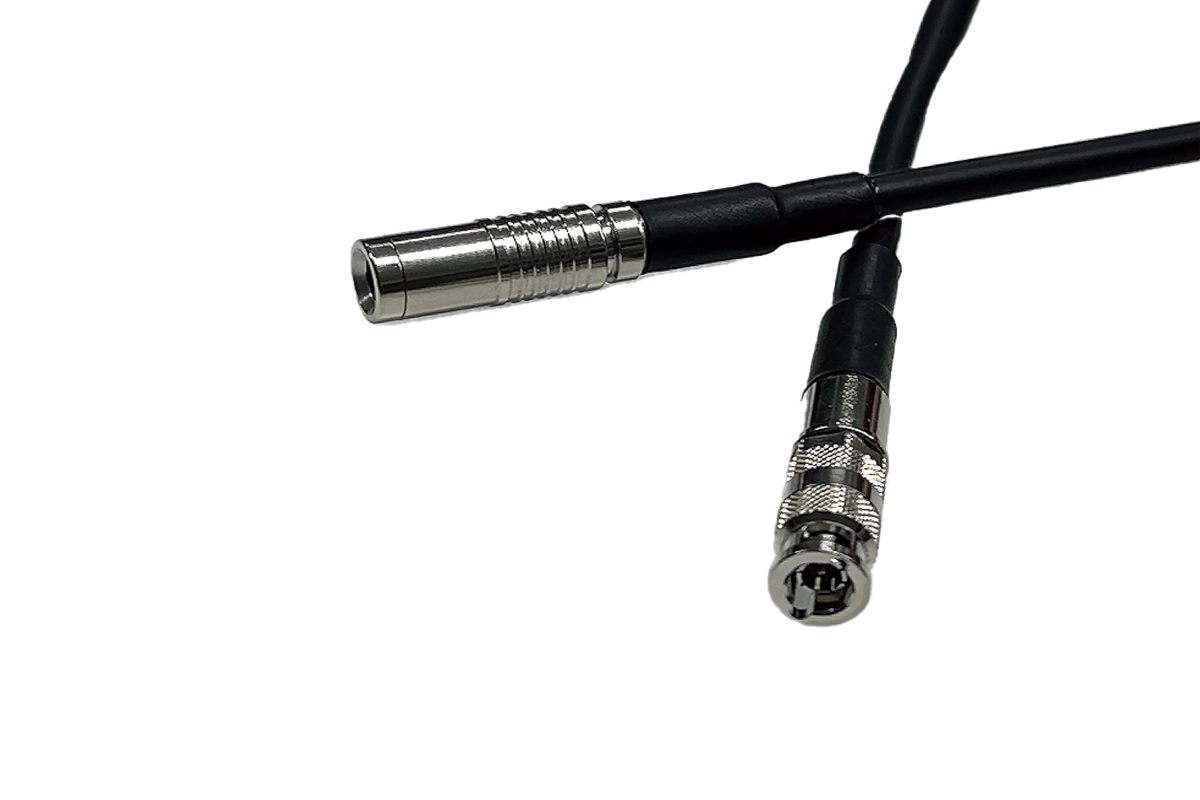

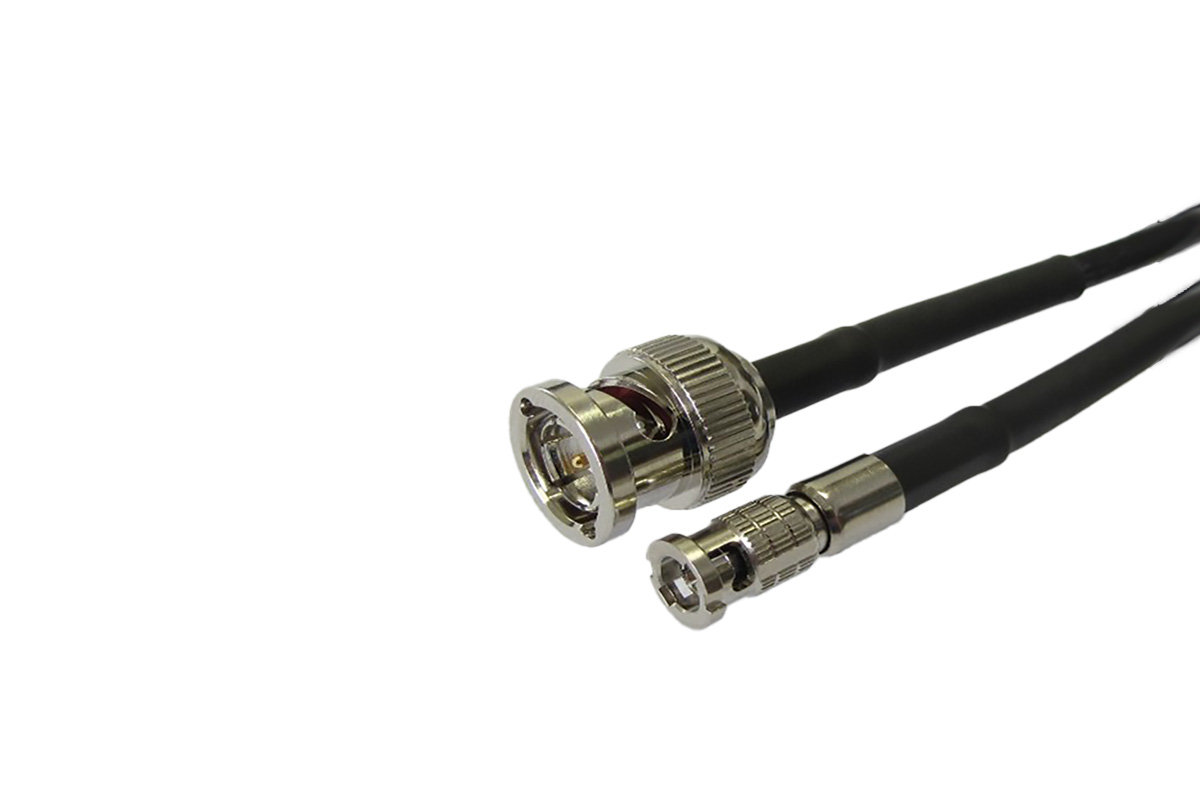

Primary Components

CableSingle Coaxial conductor - RG59 Mini
Connector A75 Ohm HD-BNC Plug
Connector B75 Ohm HD-BNC, BNC or DIN plug

Need Something Unique?

Find out how we can meet your needs with cables and assemblies custom designed for your application.
