Product Features

Supports high data rate transfers up to 5 Gps
Robotic Grade – High Flex
Thumbscrew locking
EMI resistant
No seperate power required
Contains both copper and fiber allowing for both power and data transmission over extended distances
Designed for high flex robotic applications, specifically rolling (C-Track) applications
It’s unique design utilizes specialized
materials developed for the most demanding
applications.

Request For Quote

SKU F-AOC-B3PMBT-xx-PA Category USB

Cable Specifications

Overall Diameter	4.8 mm
Storage Temp	0° to 50° C /-20° to 70° C
Jacket Color	Black
Min. Bend Radius (Dynamic/Static)	50 mm / 20 mm
Min. Bend Radius	2.4 Inches (Static)
Flame Rating	VW-1

Flex Test Parameters

Bend Radius	48 mm
Travel Distance	2000 mm
Cycle per minute	55 (back and forth = 1 Cycle)
Cycles achieved	7 million +

Primary Component

Cable	Hybrid (Combination of Fiber and Copper)

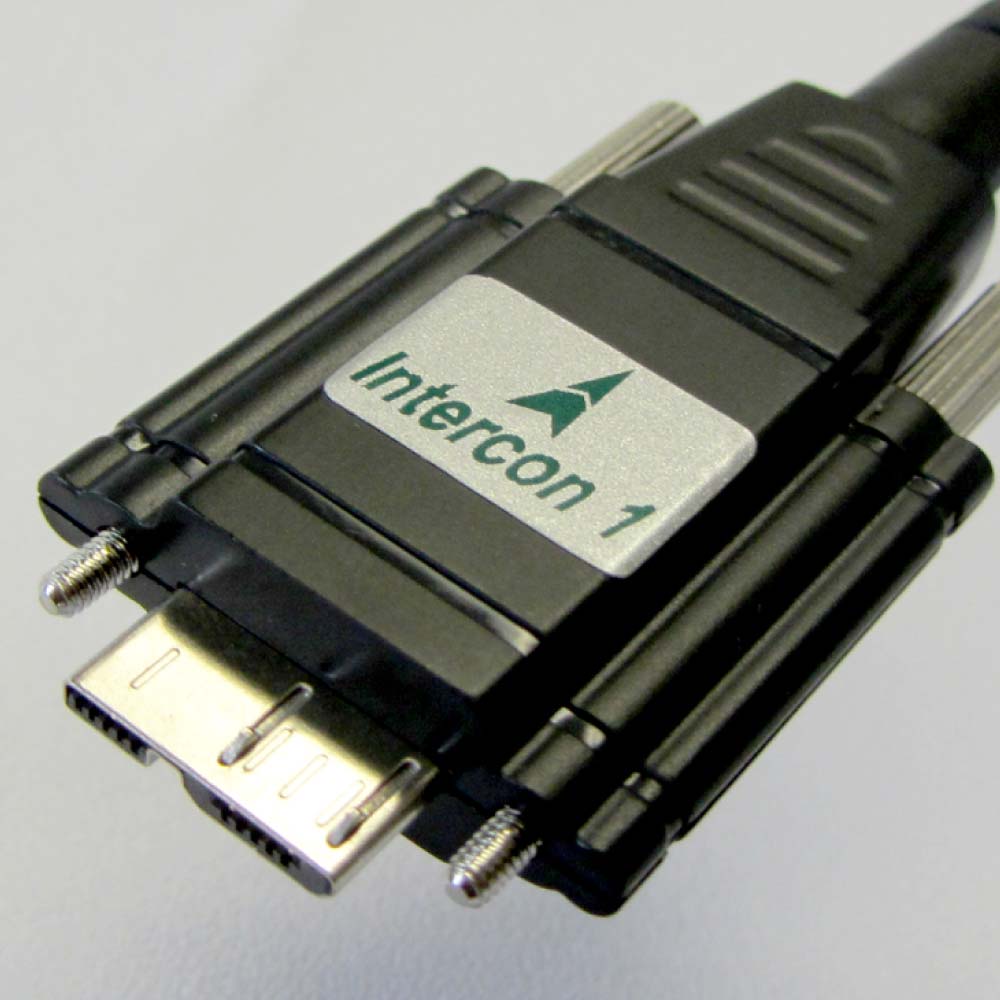

Connector A	USB 3.0 Type Micro B Plug with Thumbscrews
Connector B	USB 3.0 Type A Plug
