Product Features

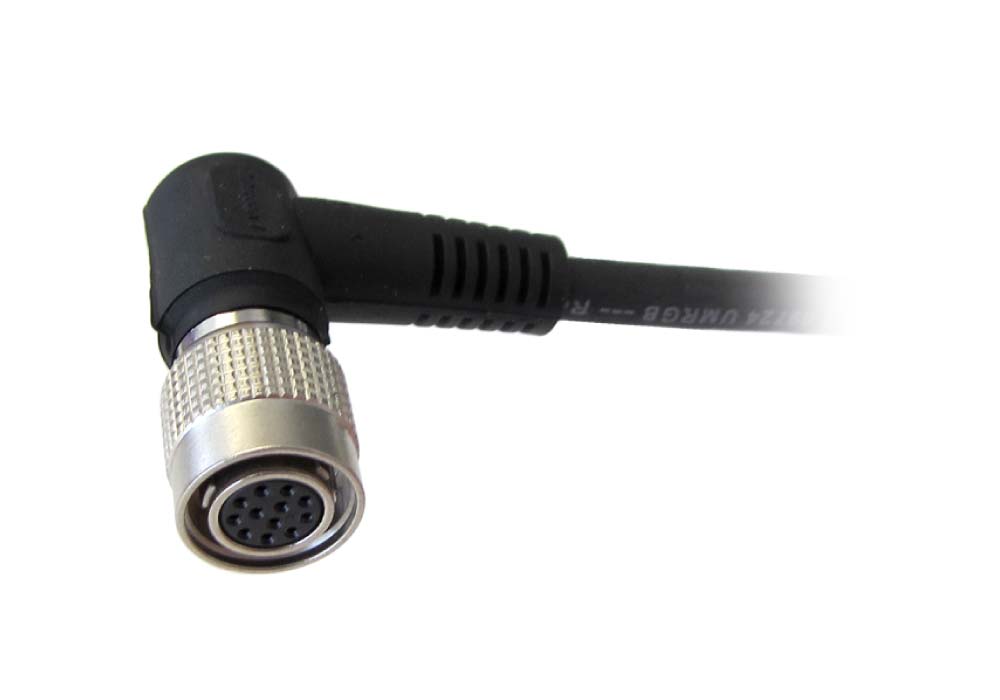

CCXC style assemblies offer a unique right angle overmold
Right angle on the camera (socket) end and overmolded straight connector on the equipment end.
Both connectors are available with a right angle.
High flex version (MVCS*-xx-P) available.

Request For Quote

SKU VCSx-xx-P Category Analog Video

Cable Specifications (non High Flex)

Overall Diameter	.270 Inches
Max Temperature	80 Degrees C
Jacket Color	Black
UL/CSA Rated	Yes
Min. Bend Radius	4.05 IN (Static)
Flame Rating	VW-1

High Flex Cable Specifications

Overall Diameter	.23 Inches
Max Temperature	80 Degrees C
Jacket Color	Black
UL/CSA Rated	Yes
Min. Bend Radius	2.3 IN (Static) 3.45 IN (Dynamic)
Flame Rating	VW-1

Primary Component

Cable	4 Coax Conductors, 4 Discrete Wires
Connector A	12 Pos Circular Plug w/ Sockets
Connector B	12 Pos Circular Plug w/ Pins
