Product Features

Intercon 1 high-flex cable construction adheres to Camera Link specifications and are Certified to Camera Link Committee Standards. By combining the most advanced materials and sophisticated building techniques, Intercon 1 provides the most robust industrial assemblies available. These assemblies are designed to function within a broad range of temperature and environmental conditions and may be used in either static or flex applications. Intercon 1’s high performance right angle Camera Link cable increases versatility and resilience in restricted space applications.

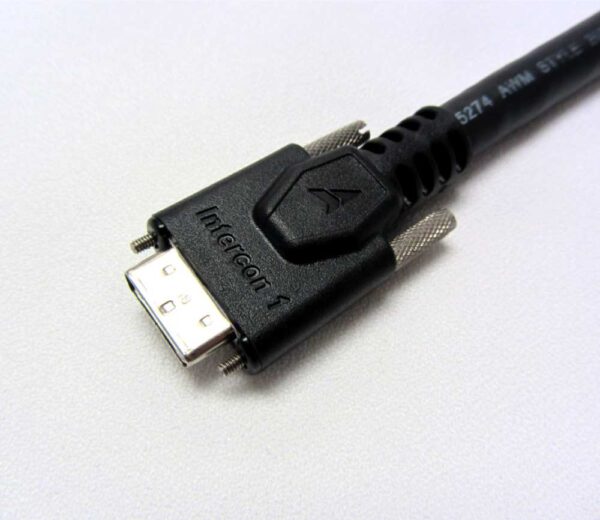

The unique right angle over-molding available in up, down, left and right orientations allows for immediate turns behind the interface that are specific to your application needs eliminating the need for minimum bend radius concerns. The common configuration consists of a right angle on the camera end and an over-molded straight connector on the equipment end. However both connectors are available with a right angle.

Request For Quote

SKU N/A Category

Cable Specifications

Overall Diameter.38 Inches
Max Temperature80° C
Jacket ColorBlack
UL/CSA RatedYes
Min. Bend Radius3.80 Inches (Static)
5.55 Inches (Dynamic)
Flame RatingVW-1

Primary Components

Cable11 Individually Shield Twisted Pair with 2 Conductors
Jacket MaterialPVC
Conductor MaterialPP
Conductor AWG28
