Product Features

Supports high data rate transfers up to 5 Gbps
Low cost USB 3.0
Thumbscrew locking
Overmolded interfaces
Secure robust interconnect from camera to computer
Increased AWG sizes allows for better performance over longer distance

Request For Quote

SKU B3PMBT-3.0-PA Category USB

Description

Specifications

Overall Diameter	.240 Inches
Max Temperature	60 °C
Jacket Color	Black
UL Rated	UL 2725
Min. Bend Radius	2.4 Inches (Static)
Flame Rating	VW-1
Cable Length	3 Meters (9.84 Ft)

Primary Components

Cable	3 Twisted Pair 2 Discrete Wires
Connector A	USB 3.0 Micro B W/Thumbscrews

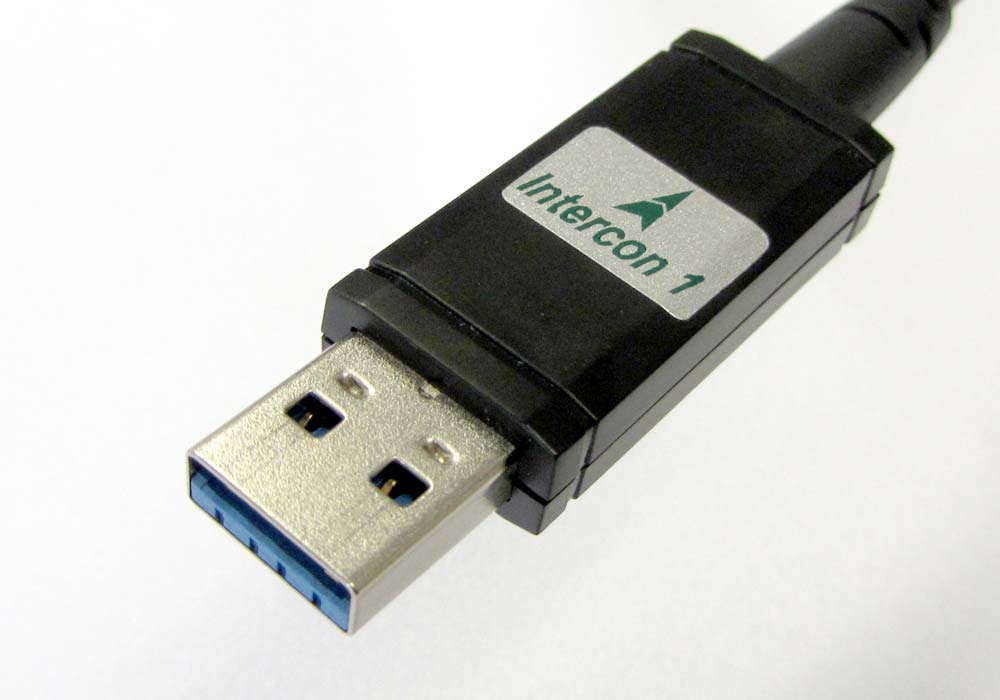

Connector B	USB 3.0 Type A Plug
