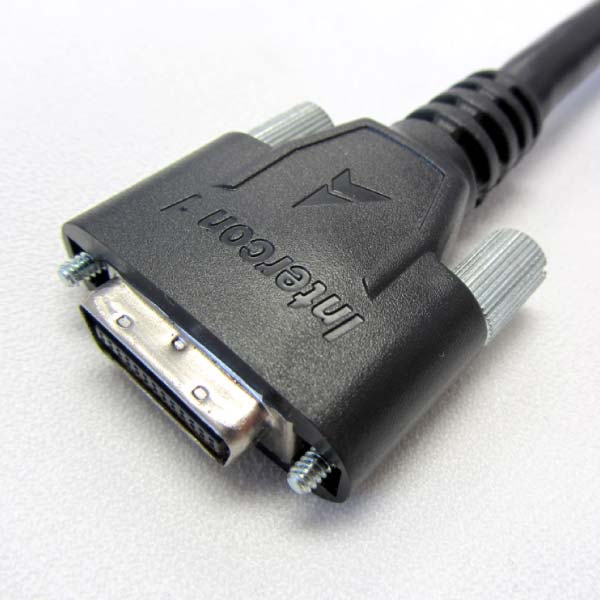

Intercon 1 high-flex cable construction adheres to Camera Link specifications and are Certified to Camera Link Committee Standards. By combining the most advanced materials and sophisticated building techniques, Intercon 1 provides the most robust industrial assemblies available. These assemblies are designed to function within a broad range of temperature and environmental conditions and may be used in either static or flex applications. Intercon 1’s high performance right angle Camera Link cable increases versatility and resilience in restricted space applications.
The unique right angle over-molding available in up, down, left and right orientations allows for immediate turns behind the interface that are specific to your application needs eliminating the need for minimum bend radius concerns. The common configuration consists of a right angle on the camera end and an over-molded straight connector on the equipment end. However both connectors are available with a right angle.
| Overall Diameter | .38 Inches |
| Max Temperature | 80° C |
| Jacket Color | Black |
| UL/CSA Rated | Yes |
| Min. Bend Radius | 3.80 Inches (Static) 5.55 Inches (Dynamic) |
| Flame Rating | VW-1 |
| Cable | 11 Individually Shield Twisted Pair with 2 Conductors |
| Jacket Material | PVC |
| Conductor Material | PP |
| Conductor AWG | 28 |
Find out how we can meet your needs with cables and assemblies custom designed for your application.
