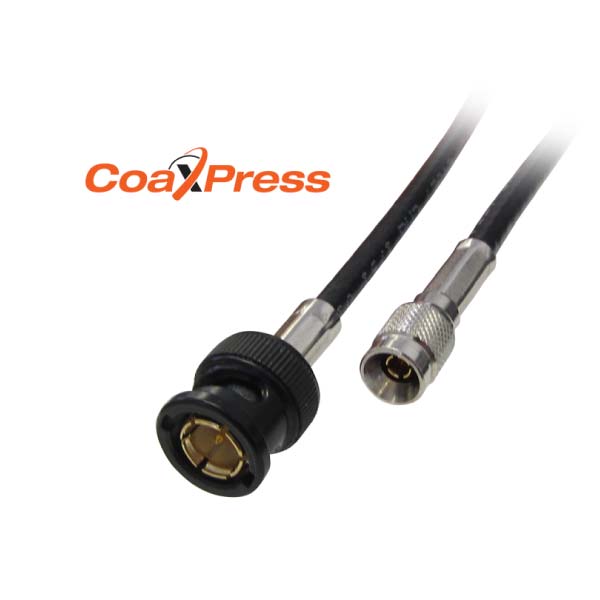

Product Features

The use of gas-injected foam high-density polyethylene insulation reduces attenuation and extends operating bandwidth. While a solid center silver plated copper conductor along with both foil and braid shield maximize signal integrity and cable distance.

Request For Quote

End 1 Attribute

HDBNC
HDBNC 90◦

End 2 Attribute

BNC
BNC 90°
DIN
DIN 90◦
HDBNC
HDBNC 90°

Clear

SKU N/A Category CoaXpress

Features

• Precision 75 Ohm impedence
• Silver plated copper conductor
• 100% sweep tested cable
• Designed for static applications
• Compliant to the JIIA CoaXPress 2.0 Standard
• Compliant RoHS

Test Parameters

• Electrical Performance Testing (Cirris System)
• Network Analyzer Testing (KEYSIGHT E5071C)

Specifications

Cable Length	Max 15meters
Overall Diameter	4.2mm
Min. Bend Radius	42mm
Max Temperature	80◦
Jacket Material	PVC
Jacket Color	Black
UL Style:	1354
