Cat 5e

Product Outline

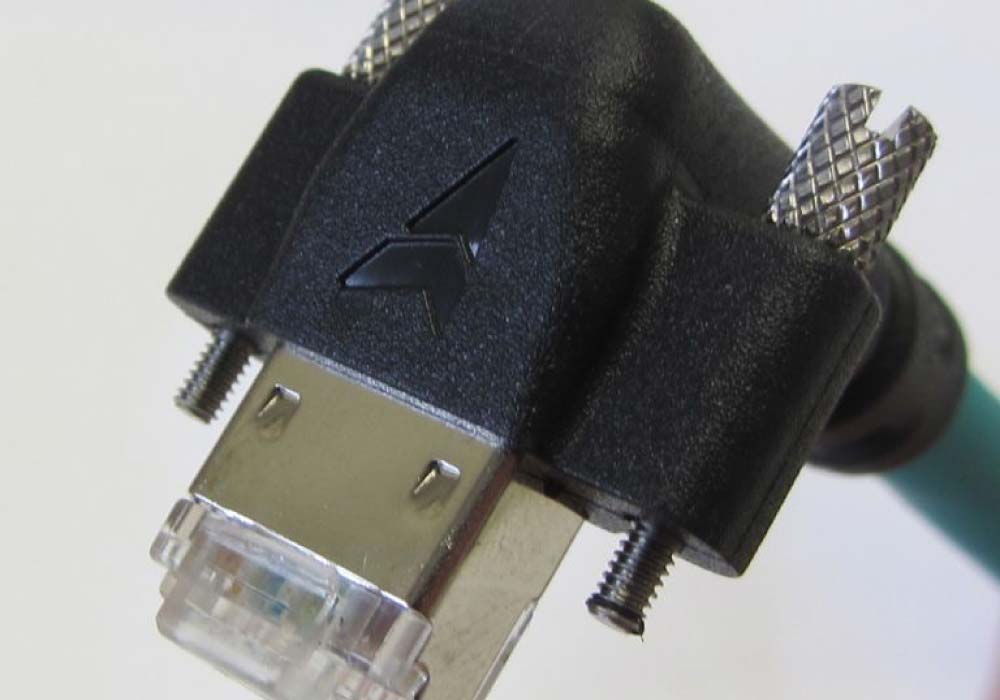

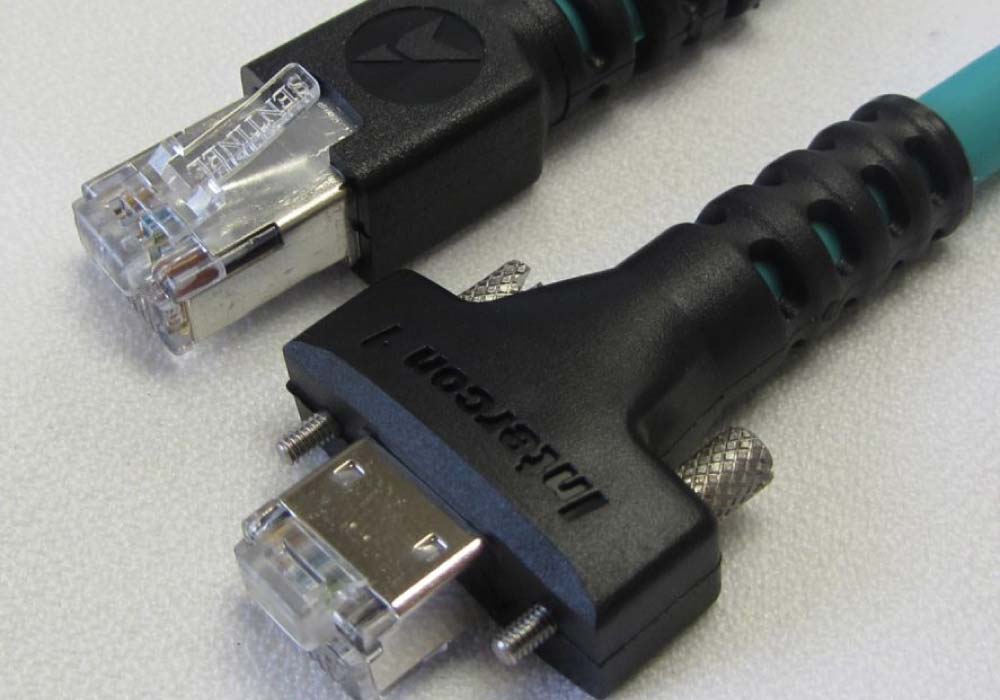

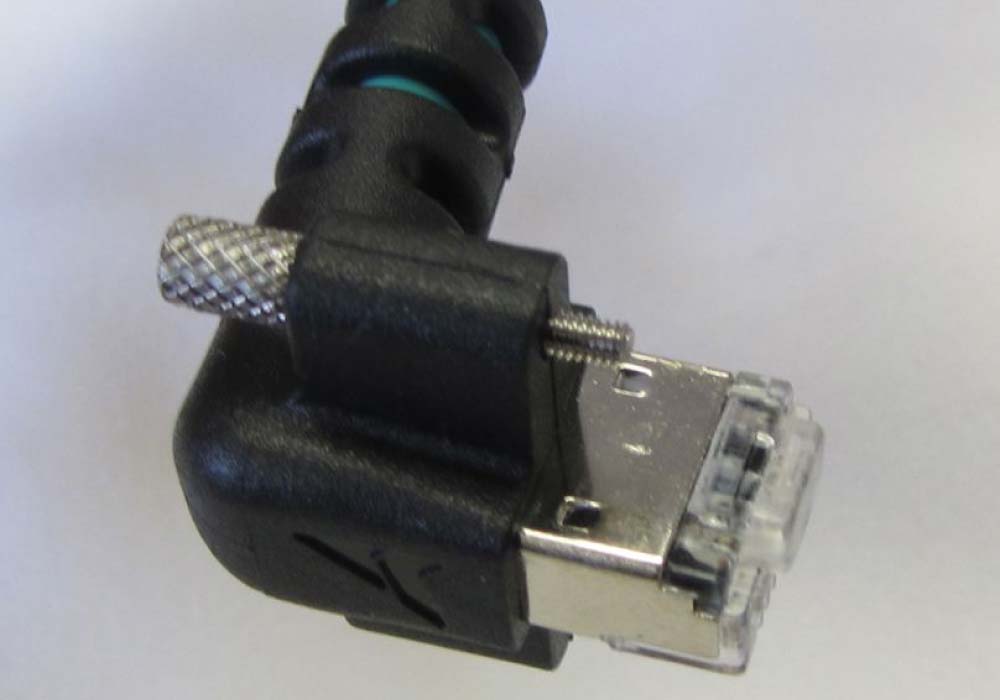

Industrial High Flex Cat5e Gig E cables are designed to interface Gig E and Gig E Vision cameras directly to a computer, eliminating the need for frame grabbers. IFC6-GEVP is the solution for brutal applications that require more than the traditional CAT 5e cable can offer. Double shielded cable ensures the best electrical performance. Our unique overmold design provides increased strain relief. The high flex cable is designed to withstand 10 million + flex cycles. The durable TPE jacket provides additional protection from elements such as water, oil, and abrasion.

  • Overmolded strain relief
  • High flex cable
  • Robust TPE jacket
  • Double shielded
  • RoHS Compliant
Cable Specifications
  • Overall Diameter: 0.245 Inches
  • Max Temperature: 80 Degrees C
  • Jacket Color: Black
  • UL Rated: Yes
  • Min. Bend Radius: 2.45 Inches (Static)
  • Min. Bend Radius: 3.68 Inches (Dynamic)
  • Flame Rating: CSA FT-1

Need Something Unique?


Find out how we can meet your needs with cables and assemblies custom designed for your application.
