Toshiba

The following cameras are listed in the charts below

IK-7XD
IK-52V
IK-53V
IK-541RA
IK-542
IK-542XD
IK-C30A

IK-C30MA
IK-C40A
IK-M30A
IK-M30TA
IK-M30MA
IK-M40A
IK-M41A

IK-M41MA
IK-M41MR
IK-M43H
IK-M44
IK-MX1
IK-SX1
IK-TU40A

IK-TU48P
IK-TU51
IK-TU52H
IK-TU53H
IK-UM42A
Right Angle

These cables are used with Toshiba Cameras: IK-M30A, IK-M30TA, IK-M30MA, IK-C30A, IK-C30MA

Camera	Toshiba Cable No.	Intercon 1 No.	Meters
IK-M30A, IK-M30TA, IK-M30MA, IK-C30A, IK-C30MA	EXC-302M (Snap)*	RHC4P-2.0-P	2
	EXC-305M (Snap)*	RHC4P-5.0-P	5
	EXC-310M (Snap)*	RHC4P-10-P	10
	EXC-315M (Snap)*	RHC4P-15-P	15
	EXC-320M (Snap)*	RHC4P-20-P	20
	EXC-325M (Snap)*	RHC4P-25-P	25
	EXC-330M (Snap)*	RHC4P-30-P	30
	* Original connectors for this camera use ‘snap’ type locking. Verify prior to order, Toshiba number is the same for both versions.
	EXC-302M (Screw)*	RHC5P-2.0-P	–
	EXC-305M (Screw)*	RHC5P-5.0-P	5
	EXC-310M (Screw)*	RHC5P-10-P	10
	EXC-315M (Screw)*	RHC5P-15-P	15
	EXC-320M (Screw)*	RHC5P-20-P	20
	EXC-330M (Screw)*	RHC5P-30-P	30
	* Second generation connectors for this camera use ‘screw’ type locking. Verify prior to order, Toshiba number is the same for both versions.

These cables are used with Toshiba Cameras: IK-MX1 Miniature One-Piece Color video camera

Camera	Toshiba Cable No.	Intercon 1 No.	Meters
IK-MX1 Miniature One-Piece Color video camera	EXC-***MX	SCC1P-1.0-BP	1
	EXC-***MX	SCC1P-2.0-BP	2
	EXC-***MX	SCC1P-3.0-BP	3
	EXC-***MX	SCC1P-5.0-BP	5
	EXC-***MX	SCC1P-10-BP	10
	EXC-***MX	SCC1P-15-BP	15
	EXC-***MX	SCC1P-20-BP	20

These cables are used with Toshiba Cameras: IK-C40A, IK-M40A, IK-M41A, IK-M41MA, IK-M41MR

Camera	Toshiba Cable No.	Intercon 1 No.	Meters
IK-C40A, IK-M40A, IK-M41A, IK-M41MA, IK-M41MR	EXC-402M	RHC3S-2.0-P	2
	EXC-403M	RHC3S-3.0-P	3
	EXC-405M	RHC3S-5.0-P	5
	EXC-410M	RHC3S-10-P	10
	EXC-415M	RHC3S-15-P	15

These cables are used with Toshiba Cameras: IK-M43H

Camera	Toshiba Cable No.	Intercon 1 No.	Meters
IK-M43H	EXC-4302	RHC11S-2.0-P	2
	EXC-4303	RHC11S-3.0-P	3
	EXC-4305	RHC11S-5.0-P	5
	EXC-4312	RHC11S-12-P	12
	EXC-4320	RHC11S-20-P	20
	EXC-4330	RHC11S-30-P	30

These cables are used with Toshiba Cameras:IK-541RA

Camera	Toshiba Cable No.	Intercon 1 No.	Meters
IK-541RA	EXC-502F	VCP-2.0-S	2
	EXC-505F	VCP-5.0-S	5
	EXC-510F	VCP-10-S	10
	EXC-525F	VCP-25-S	25

These cables are used with Toshiba Cameras: IK-SX1 (Digital mono-chrome progressive-scan), LVDS or Camera Link

Camera	Toshiba Cable No.	Intercon 1 No.	Meters
IK-SX1 (Digital mono-chrome progressive-scan), LVDS or Camera Link	Camera Link Standard Cable	CLCP-1.0-P	1.0
		CLCP-2.0-P	2.0
		CLCP-3.0-P	3.0
		CLCP-4.5-P	4.5
		CLCP-5.0-P	5.0
		CLCP-7.0-P	7.0
		CLCP-10-P	10
	LVDS Assemblies	Custom cables built to order

These cables are used with Toshiba Cameras: IK-542, IK-542XD Progressive Scan Full Frame

Camera	Toshiba Cable No.	Intercon 1 No.	Meters
IK-542, IK-542XD Progressive Scan Full Frame	Contact Intercon 1 regarding ordering data

These cables are used with Toshiba Cameras: IK-TU40A, IK-TU48P

Camera	Toshiba Cable No.	Intercon 1 No.	Meters
IK-TU40A, IK-TU48P	EXC-T403	RHC9P-3.0-P	3
	EXC-T406	RHC9P-6.0-P	6.5
	EXC-T410	RHC9P-10-P	10.5
	These industrial grade IK-TU40A assemblies have been Toshiba approved and are also available in a right-angle version.
	Right-Angle

These cables are used with Toshiba Cameras: IK-TU51, IK-TU52H, IK-TU53H

Camera	Toshiba Cable No.	Intercon 1 No.	Meters
IK-TU51, IK-TU52H, IK-TU53H	EXC-T503	RHC23P-3.0-P	3
	EXC-T506	RHC23P-6.0-P	6.5
	EXC-T510	RHC23P-10-P	10.5
	These industrial grade IK-TU51 assemblies have been Toshiba approved and are also available in a right-angle version with UP \| DOWN \| RIGHT \| LEFT configurations.
	Right-Angle

These cables are used with Toshiba Cameras: IK-UM42A

Camera	Toshiba Cable No.	Intercon 1 No.	Meters
IK-UM42A	EXC-U402	RHC13S-2.0-P	2
	EXC-U403	RHC13S-3.0-P	3
	EXC-U405	RHC13S-5.0-P	5
	EXC-U410	RHC13S-10-P	10
	EXC-U420	RHC13S-20-P	20
	EXC-U430	RHC13S-30-P	30

These cables are used with Toshiba Cameras: IK-52V, IK-53V

Camera	Toshiba Cable No.	Intercon 1 No.	Meters
IK-52V, IK-53V	EXC-5V	VCS-2.0-6BJH	2
IK-52V, IK-53V	Custom length assemblies available contact your local sales contact.

These cables are used with Toshiba Cameras: IK-7XD

Camera	Toshiba Cable No.	Intercon 1 No.	Meters
IK-7XD	EXC-7XDS	RHC21XSJ-2.0-P	2
IK-7XD	Contact Intercon 1 for data on this extension cable or a custom length extension

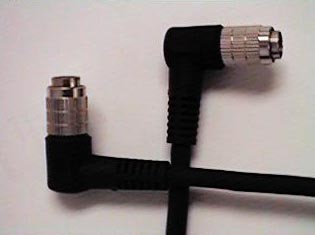

Right-Angle Molded Assemblies

Virtually every assembly listed on this page is available with a Right Angle molded connector on either end, or both, of the assembly.

Four standard orientations are available;

Right
Left
Up
Down

Bulk Cable

Intercon 1 Bulk Cable is now available in pre-packaged 31 meter lengths. Please contact Intercon 1 sales or your dealer for part numbers and pricing data.

Can't find your cable?

Send us the camera manufacturer and model number and we will provide that to you promptly.
