USB | USB 3.0

Product Outline

USB 3.0 also known as Superspeed USB allows for data transfer rates ten times greater than that of USB 2.0.  These robust cables provide a reliable interconnect from the camera to the computer. The thumbscrew locking feature meets the requirements of the soon to be released USB 3.0 Vision standard and insures a secure robust connection to the camera.  Increased awg sizes allows for better performance over longer distance when compared to smaller awg cables.

Features – InfiniFlex

  • Supports high data rate transfers up to 5 Gbps
  • Robotic Grade – High Flex
  • Thumbscrew locking
  • Rugged overmolded interfaces

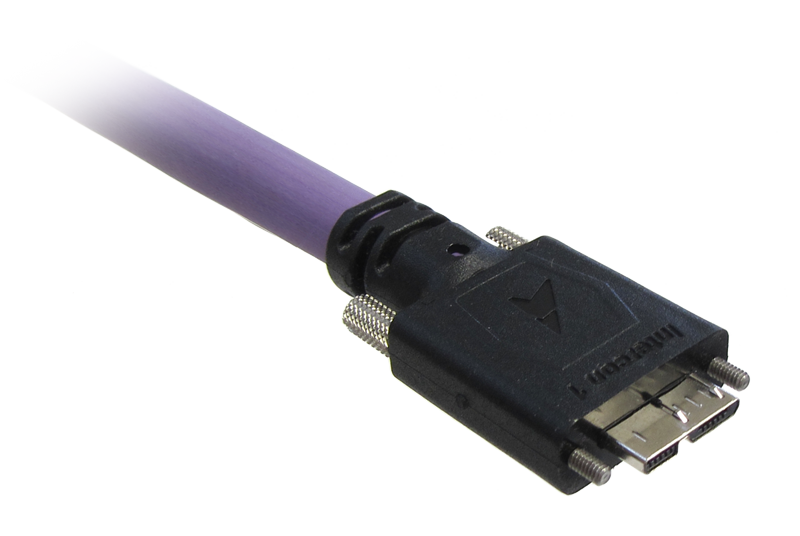

Cable Specifications – InfiniFlex

  • Overall Diameter: .340 Inches
  • Max Temperature: 80 Degrees C
  • Jacket Color: Violet
  • Min. Static Bend Radius: 3.4 Inches
  • Min. Dynamic Bend Radius: 5.10 Inches
  • Super Speed Pair: 26 awg
  • UTP: 28 awg
  • Power and Ground: 24 awg

Features – Static Grade

  • Supports high data rate transfers of up to 5 Gbps
  • Low cost USB 3.0
  • Thumbscrew locking
  • Overmolded interfaces

 Cable Specifications – Static Grade

  • Overall Diameter: .240 Inches
  • Max Temperature: 60 Degrees C
  • Jacket Color: Black
  • UL Rated: UL 2725
  • Min. Bend Radius: 2.4 Inches (Static)
  • Flame Rating: VW-1

Find a part number for your cable:

Custom cable ends are available! Please contact customer service for more information.

Select a cable type





Select the first cable end

Type A
Micro B with Thumbscrews

Select the second cable end

Type A
Micro B with Thumbscrews

Enter your desired cable length

 meters

If you would like to order a cable length in a different length than is allowed here, please contact customer service.

Part number: IFC6-GEVP-XX-P

Please contact customer service to obtain the part number
